Cheap Home Prefabricated Light Steel System House Single Storey Villa with Garage

Brand Name : DEEPBLUE

Model Number : lINWOOD21

Certification : AS/NZS,UL,AISI,

Place of Origin : NINGBO,CHINA

MOQ : 1 SET

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 12000 houses/year

Delivery Time : 30-45 days

Packaging Details : Bare bundle / 40HQ

material : Light Gauge Steel

Wall material : Alc panel/fiber cement cladding+MGO board/gypsum board

Insulation material : EPS/XPS/PU sandwich panel or glass wool

Floor/foundation material : laminate flooring/wooden/PVC carpet

Life time : 100 years for structure

Other fittings : toilet,washbasin,shower,kitchen etc.

Contact Now

Cheap Home Prefabricated Light Steel System House Single Storey Villa with Garage



Basic information:



MEASUREMENTS
Ground Floor 16.1sq 149.5㎡
Garage 3.7sq 34.8㎡
Outdoor Living 1.1sq 10.4㎡
Porch 0.3sq 3.0㎡
Total Area 21.2sq 197.4㎡
　
Minimum Lot Width 12.5m
Home Length 22.4m
Home Width 11.0m

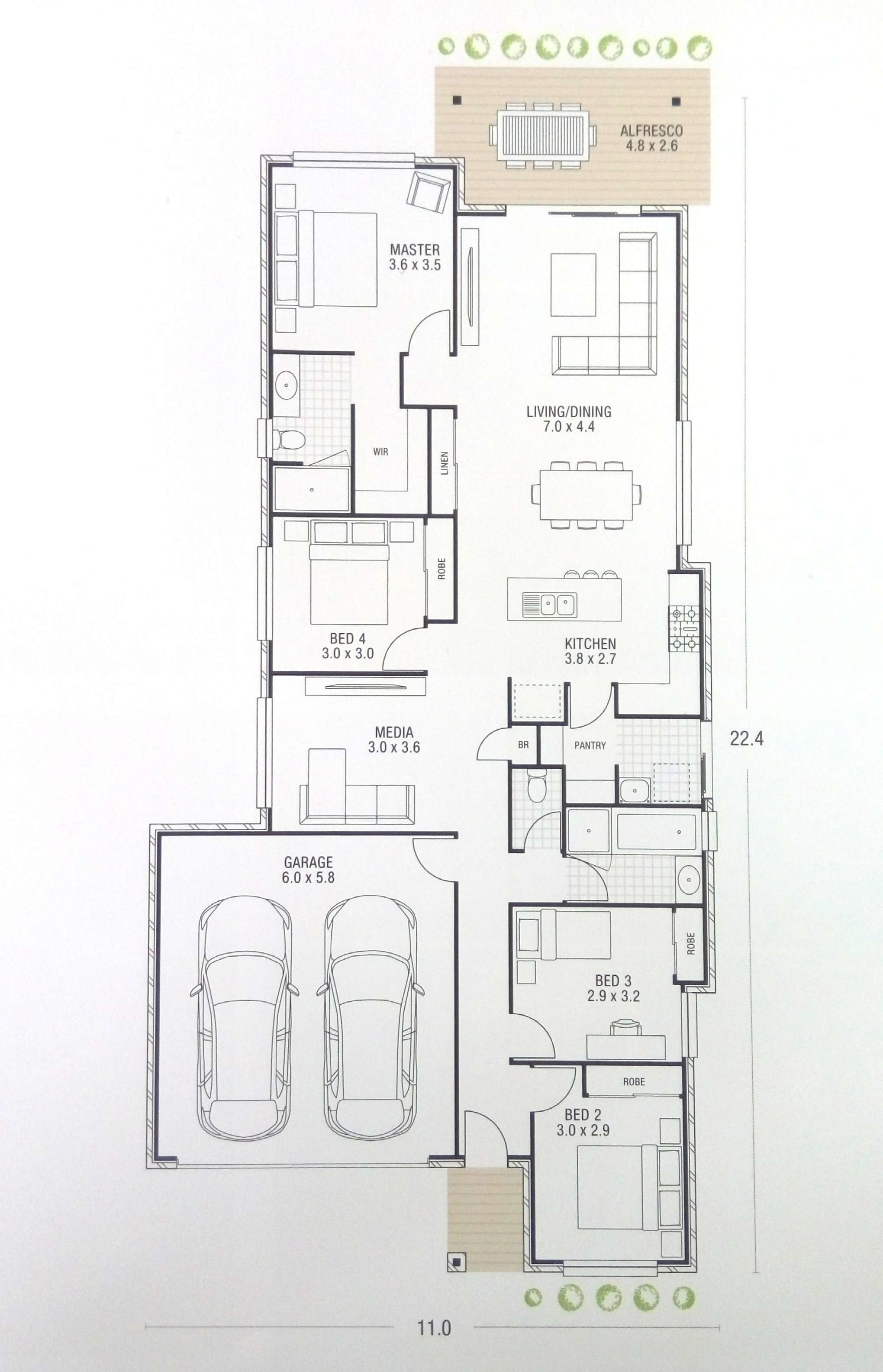

The floor plan:

Cheap Home Prefabricated Light Steel System House Single Storey Villa with Garage

Applications:



House, Office, Shop, hotel, etc.



Detail:



Name Bungalow homes Application Bungalow homes for a living
Color depend on customer’s request Feature

1.earthquake, cyclone proof

2.100 years of life

3.green, Energy save
Material light steel and other parts material Certificate CE,ISO,SAA,ETC




Door: steel security door/WPC or wooden door；
Window: aluminum alloy/PVC；
Ceiling material: MGO board/gypsum board.

Why Choose Light Gauge Steel Structure?


1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.



 Design Code:




1) AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.





Our Services:



If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house



Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.



We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.



Cheap Home Prefabricated Light Steel System House Single Storey Villa with GarageCheap Home Prefabricated Light Steel System House Single Storey Villa with Garage

FAQ:



1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?

A: Long lifetime; Good earthquake-proof, Green and energy saving; Fast and easy to install etc……

2. Q: What is the lifetime for your house?

A: The durable for the structure is more than 70 years.

3. Q: What is the intensity and thickness of your steel structure material?

A: All our steel structure intensity is S550. We can provide 0.75mm,0.95mm,1.15mm steel material.

4. Q: How about your production equipment and structure design software?

A: Our production equipment is the most advanced import from New Zealand. Our structure design software also imports from abroad-PRO DESIGN.

5. Q: What are the main technical data of your houses?

A: We can send you the specification and technology details.
